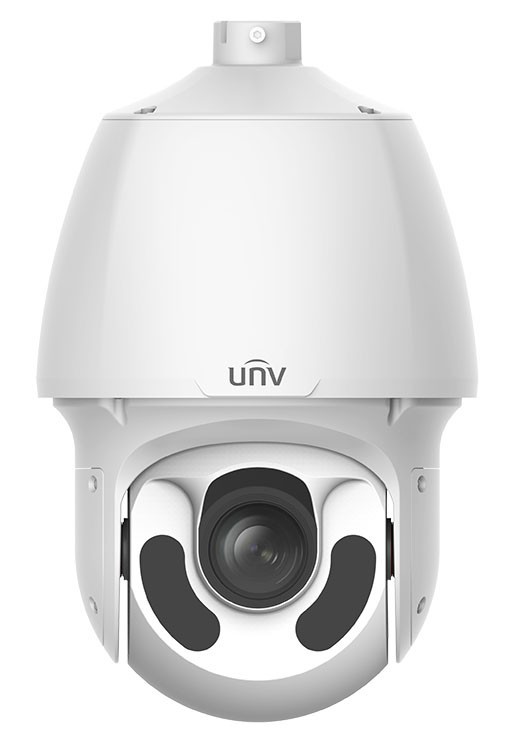

IPC6222ER-X30P-B
2MP 30x IR Network PTZ Dome Camera
- • 1/2.8" progressive scan CMOS
• Up to 1920×1080 resolution,60fps
• 30x optical zoom (4.5~135mm)
• Ultra 265,H.265,ONVIF
• Smart IR, up to 150m IR distance
• All-weather design
• Audio in/out, Alarm in/out
• AC24V±25%,DC24V±25%, Max 44W
• IP66, -40°C ~ +65°C
• (-P)PoE
| IPC6222ER-X30-B | IPC6222ER-X30P-B | |||||
| Camera | ||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||
| Lens | 4.5 ~ 135mm, AF automatic focusing and motorized zoom lens | |||||
| Digital Zoom | 16 | |||||
| Optical Zoom | 30 | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4.5 | 69.8 | 27.9 | 14 | 7 | ||
| 135 | 2094.8 | 837.9 | 419 | 209.5 | ||
| Angle of View (H) | 56.7° ~ 2.28° | |||||
| Angle of View (V) | 31.89° ~ 1.28° | |||||
| Angle of View (O) | 65.05° ~ 2.61° | |||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR |
|||||
| Iris | Autol; F1.5 ~ F4.0 | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 150m (492ft) | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
|||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| EIS | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 24 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Smart | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Pan & Tilt | ||||||
| Pan Range | 360° (endless) | |||||
| Pan Speed | 0.1°/s ~ 240°/s | |||||
| Preset speed: 300°/s | ||||||
| Tilt Range | –15° ~ 90° (auto reverse) | |||||
| Tilt Speed | 0.1° ~ 160°/s | |||||
| Preset speed: 240°/s | ||||||
| Number of Presets | 1024 | |||||
| Patrol | Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16. |
|||||
| Home Position | Supported | |||||
| Interface | ||||||
| Audio I/O | Audio cable | |||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1RJ45 10M/100M Base-TX Ethernet | |||||
| General | ||||||
| Power | AC 24V±25%, DC 24V±25% | AC 24V±25%, DC 24V±25%, PoE (PSE Required) | ||||
| Power consumption: Max 44W | ||||||
| Dimensions (Ø x H) | Ø227 x 359.4mm (Ø8.9” x 14.2”) | |||||
| Weight | 5.28kg (11.6lb) | |||||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) | |||||
| Ingress Protection | IP66 | |||||
Specifications
| Couleur | Blanc |
|---|---|
| Type | PTZ |
| Resolution | 2MP |
| Zoom | 30x |
| IR | 150m |
| Lens | 4,5-130mm |
| WDR | 120db |
| Micro SD | Oui |
| Audio | Two-way communication |
Guides
DATASHEET
IPC6222ER-X30(P)-B
